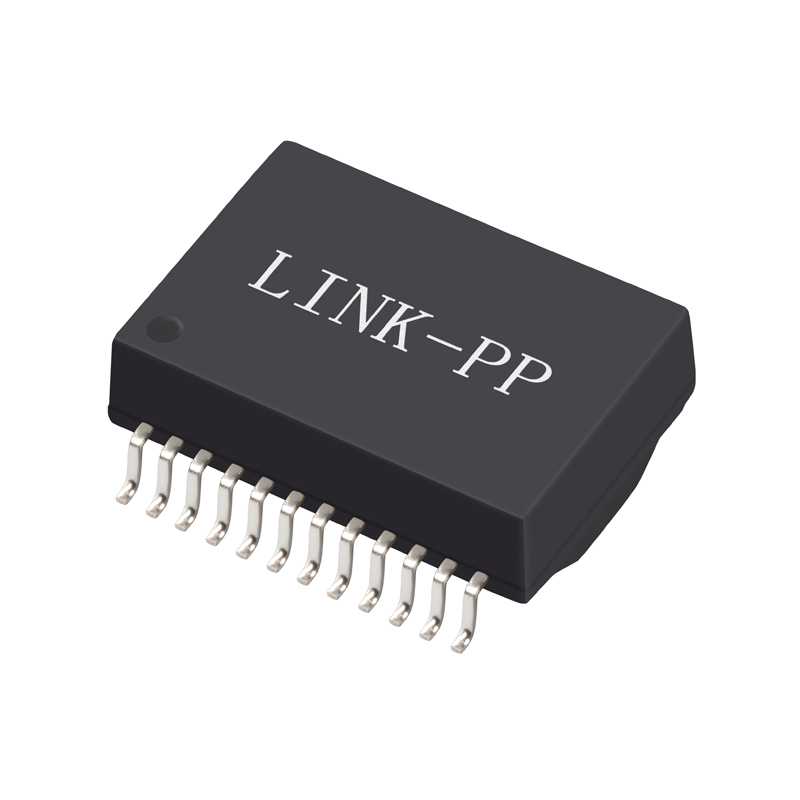

L22T001-4 Single Port 2.5G Base - T Telecom Transformer Modules PoE 90W

  • 1
  • 2

Brand Name : LINK-PP

Model Number : LPxxxxxx

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Original : L22T001-4

Equivalent : LPxxxxxx

Speed : 2.5G Base-T

Transformer Type : Isolation and Data Interface

Operating T-40~+105℃emperature : -40~+85℃

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Contact Now

L22T001-4 Single Port 2.5G Base –T Telecom Transformer Modules PoE 90W Meet IEEE 802.3bt type4 standard

Item Part Number L22T001-4
LINK-PP Part Number LPxxxxxx
Manufacturer LINK-PP
Speed 2.5G BASE-T
Number of Ports Single Port
PIN number 24 PIN
Cores per Port 8
POE Non PoE
Type SMD
Size 18.1 x 16 x 6.2
Pin Pitch 1.27
Circuits 3C+T
Operating Temperature -40~+85℃
CMC PHY

You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.06-$3.2 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly

L22T001-4​ SPECIFICATION:

Designed for Ethernet 2.5G BASE-T,Single port applications.
Supports 4 pairs of category 5 UTP cable.
Cable interface for isolation and low common mode emissions.
Designed to meet IEEE 802.3bt type4 with 1000mA balanced current.
Compliance with ROHS requirements.
Compliant with RoHS&Halogen Free requirements.
Operating and Storage Temperature
Operating Temperature: -40°C to +85°C
Storage Temperature: -40°C to +85°C
Packing Information
400 pcs finished goods per reel
3 reels( 1200 pcs finished goods) per inner box
2 Inner boxes(2400 pcs finished goods) per master carton

L22T001-4 Single Port 2.5G Base - T Telecom Transformer Modules PoE 90W

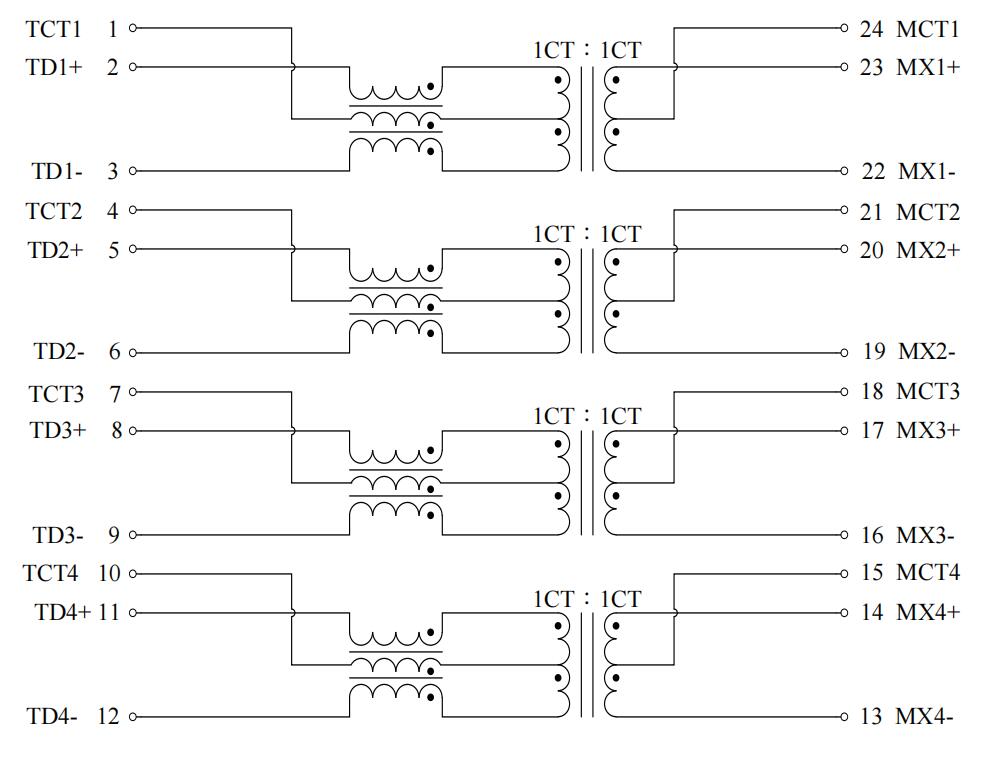

L22T001-4 2.5G Base –T Telecom Transformer Modules PoE 90W ELECTRICAL CHARACTERISTICS Schematic:

L22T001-4 Single Port 2.5G Base - T Telecom Transformer Modules PoE 90W

L22T001-4 Recommened PCB Layout (Unit mm)
L22T001-4 Single Port 2.5G Base - T Telecom Transformer Modules PoE 90W

L22T001-4 Similar Part Number :

L22N018-0 L22N021-0 L22N022-0
L22T001-4 L22T001-B L22T001-S
L22T002-2 L22T002-3 L22T003-0
L22T003-3 L22T005-0 L22T005-4
L22T006-0 L22T006-3 L22T006-4
