SS73100-047F Rj45 Socket 2x8 Ethernet Connector Stacked 16 Ports 8P8C LPJE100XCNL

Name: SS73100047F Rj45 Socket 2x8 Ethernet Connector Stacked 16 Ports 8P8C LPJE100XCNL
Brand: LINK-PP
Price: 0.11 USD

China SS73100-047F Rj45 Socket 2x8 Ethernet Connector Stacked 16 Ports 8P8C LPJE100XCNL wholesale

Brand Name : LINK-PP

Model Number : SS73100-047F

Certification : UL,RoHS,Reach,ISO

Place of Origin : GuangDong, China

MOQ : 50/500/1000/60K

Price : $0.11-$24

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 180K/Month

Delivery Time : Stock

Packaging Details : Tray

Specifications : LPJE100XCNL

P.N : SS73100-047F

Mechanical : 115.08x28.2x25.28mm

Apllication : Cat3,Cat5,Cat5e, AutoMDIX 2x4 config

Mounting : THT,R/A

Samples : Available

Contact Now

SS73100-047F Rj45 Socket 2x8 Ethernet Connector Stacked 16 Ports 8P8C LPJE100XCNL

2X8 8p8c RJ45 Port Connector without Integrated Magnetics,Without LED,Tab Up/Tab Down,RoHS
LINK-PP Part Number	LPJE100XCNL
BelFuse Part Number	SS73100-047F
Application-Lan	ETHERNET(NoN PoE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores per Port	-
Diodes	NO DIODES
LED Option	Without LEDs
Latch	TAB UP/TAB DOWN
Number of Ports	2X8
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Package Height (Inches)	0.995
Package Height (mm)	25.28
Package Length (Inches)	4.531
Package Length (mm)	115.08
Package Width (Inches)	1.110
Package Width (mm)	28.20
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH
Speed	Without Magnetics
Temperature	0 TO + 70℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

SS73100-047F Rj45 Socket 2x8 Ethernet Connector Stacked 16 Ports 8P8C LPJE100XCNL

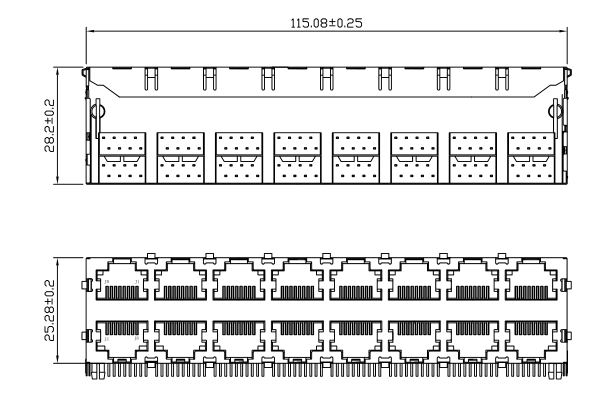

Mechanical:
1.Housing&Insert Material : PBT UL94V-0
2.Contact Material : Diameter 0.46mm Phosphor Bronze
Gold Plating Over Nickel
3.Shield : 0.20-0.25mm Thickness Brass
With Tin Plated
4.Operation Life : 750 Cycless Min
Environmental
1.Storage : -40℃ to +85℃
2.Opertion : -40℃ to +85℃
3.Wave solder tip temperature: 265℃ Max, 5 Sec Max
UL Certification : File Number E484635

Other lists Available

LPJE100XCNL
LPJE100-XCNL
LPJE100-1CNL

Do you also interested in External Magnetic Transformer ?

Single port ? Dual Ports ? Quad Ports ?

10/100Base-T ? 10/100/1000Base-T ?

With or Without POE POE+ ?
