2x1 Ports LPJ17489AGNL POE RJ45 Connector Jack 10/100 Base-Tx

Name: 2x1 Ports LPJ17489AGNL POE RJ45 Connector Jack 10100 BaseTx
Brand: LINK-PP
Price: 0.09 USD

China 2x1 Ports LPJ17489AGNL POE RJ45 Connector Jack 10/100 Base-Tx wholesale

Brand Name : LINK-PP

Model Number : LPJ17489AGNL

Certification : ISO9001,SGS,UL,REACH,RoHS

Place of Origin : GuangDong, China

MOQ : 50/500/1000/25K

Price : $0.09-$1.85

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000000/Month

Delivery Time : Stock

Packaging Details : 18pcs/tray,324pcs/carton

Specification : LPJ17489AGNL

Standard : IEEE 802.3af/at

Ethernet : 2x 10/100 Power Enable

Mounting : THT

Termination : Solder

Samples : Available

Contact Now

2x1 Ports LPJ17489AGNL POE RJ45 Connector Jack 10/100Base-Tx

2 Port 10/100Base-T POE Rj45 Connectivity
Power Over Ethernet+ IEEE802.3af/at
600mA / 720mA Continuous
Application to Industrial Ethernet Switches
LINK-PP Ethernet Rj45 Connector

ELECTRICAL SPECFICATIONS @25℃

1.Turn Ratio(± 2%):

TX=1CT:1CT,1CT:1CT

2.Inductance OCL: 350uH MIN

@100KHz/0.1V,8mA DC Bias

3.Insertion Loss:

-1.0dB MAX @ 1.0-65MHz

4.Return Loss:

-20dB MIN @ 1-10MHz

-16dB MIN @ 10-30MHz

-12dB MIN @ 30-60MHz

-10dB MIN @ 60-100MHz

5.Cross talk:

-40dB MIN @ 1-30MHz

-35dB MIN @ 30-60MHz

-30dB MIN @ 60-100MHz

6.Common Mode Rejection:

-30dB MIN @ 1-50MHz

-20dB MIN @ 50-150MHz

7.Hipot Test: 1500Vrms MIN

Product Tags:

rj45 power over ethernet

dual rj45 jack

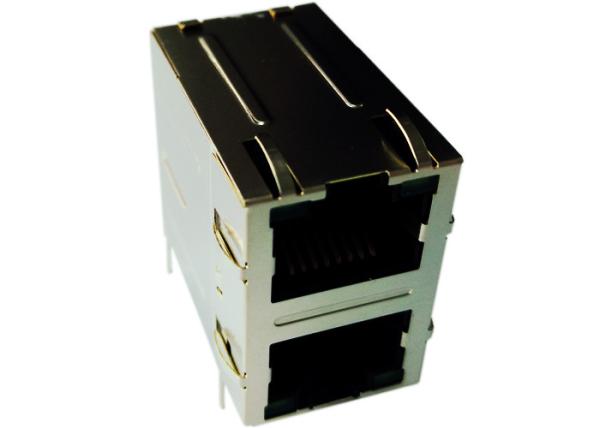

2x1 Ports LPJ17489AGNL POE RJ45 Connector Jack 10/100 Base-Tx Images
