10 / 100 / 1000 Base POE RJ45 Connector Tab up with LED 25.4MM

Place of Origin : China

Brand Name : LINK-PP

Certification : SGS, UL,CE,ISO9001:2008

Model Number : LPJG48851AFNL

Product keywords : 1X4 POE RJ45

MOQ : 50/500/1000/25K

Price : $0.09-$1.85

Packaging Details : Tray, Tape & Reel

Delivery Time : Stock

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000K/month

Part Number : LPJG48851AFNL

Speed : 10/100/1000 Base-t

Port : 1x4 Port

LED Option : GREEN/GREEN

Sample : Free

File : PDF/3D/ISG/Stp/Step/Datasheet

Contact Now

10 / 100 / 1000 Base POE RJ45 Connector Tab up with LED 25.4MM

Quick Details

1.1 X 4 Port RJ45 Jack

2.10/100/1000 Base RJ45 Connector

3.Through hole HUB, PC Card RJ45 Jack

4.SDH / PDH / IP Phone RJ45 Jack

1X4 RJ45 Female Connector with 1000 Base-T Integrated Magnetics,Green/Green LED,Tab Up,RoHS
LINK-PP Part NumberLPJG48851AFNL
Application-LanETHERNET(NoN PoE)
AutomDXYES
Bst CircuitYES
Configuration RXT,C
Configuration TXT,C
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Cores per Port8
DiodesNO DIODES
LED OptionGREEN/GREEN
LatchTAB UP
Number of Ports1X4
PCBFR4
PCB Mount AngleSIDE ENTRY
PCB Retaining PostT POST
Package Height (Inches) 0.535
Package Height (mm) 13.60
Package Length (Inches) 1.00
Package Length (mm) 25.40
Package Width (Inches) 2.338
Package Width (mm) 59.39
Pin TypeTHT SOLDER
RoHS CompliantYES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
SearchYES
Shield EMI TabsWITH
Speed1000 BASE-T
Temperature0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Description:


1X4 10/100/1000BASE POE/POE+ RJ45 connector with/without leds, meeting IEEE 802.3af/at

1. Product Type Features:
1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 4

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85


Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

16 years production experience,

1100 staff,

100% test

Flexible delivery time

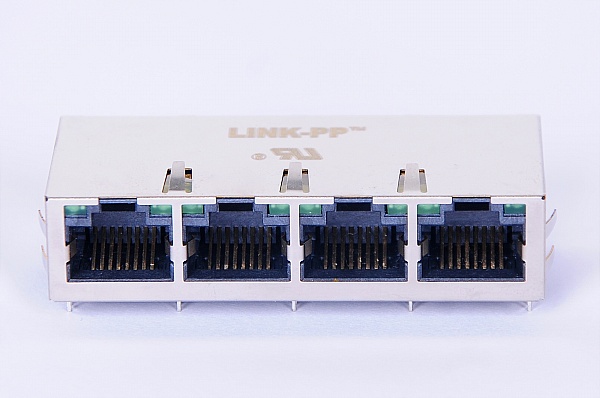

10 / 100 / 1000 Base POE RJ45 Connector Tab up with LED 25.4MM

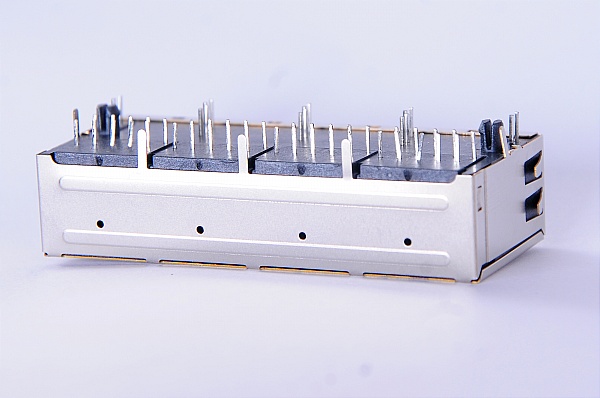

10 / 100 / 1000 Base POE RJ45 Connector Tab up with LED 25.4MM
